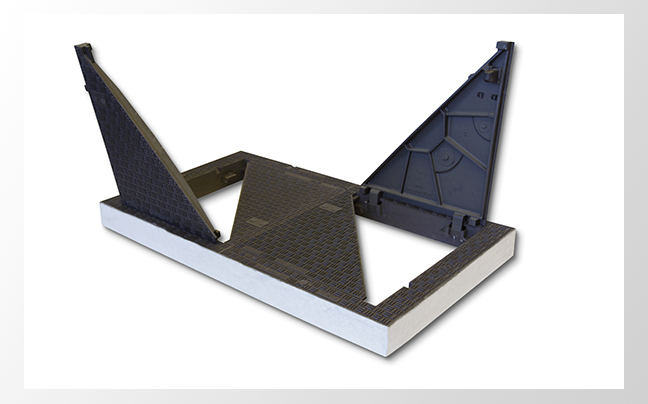

The ease of use and functionality of the Trigona cable duct cover is not it’s only impressive features. Optimal design, innovative technology and an efficient choice of materials ensure easy opening and closing of the individually removable covers, which also have a three- point support to prevent them from rattling.
- Frame with concrete
- with locking device or cam lock *1)
- with sign recess
- Concrete according to exposure class XF4 in accordance with DIN 206
- Mounting on frame for transfer aid
- Reversible opening direction 180
*Note: The No.1 cover with locking cams can be exchanged for a cover with a turnbuckle driver (and vice versa). Alternative locking systems such as OTC or McGard fittings are available on request.
| Clear width | Class | Features | Overall height (mm) | kg | Art. no. |
| 700x700 mm | B 125 | with locking device | 125 | 181 | 600622 |
| with cam lock | 125 | 181 | 606325 | ||
| D 400 | with locking device | 175 | 254 | 601035 | |
| with cam lock | 175 | 254 | 606323 | ||
| 1400x700 mm | B 125 | with locking device | 125 | 282 | 600623 |
| with cam lock | 125 | 282 | 606326 | ||
| D 400 | with locking device | 175 | 407 | 601036 | |
| with cam lock | 175 | 407 | 606324 |
- with locking device or cam lock *1)
- with sign recess
- with metallic adapter ring
- Reversible opening direction 180
*Note: The No.1 cover with locking cams can be exchanged for a cover with a turnbuckle driver (and vice versa). Alternative locking systems such as OTC or McGard fittings are available on request.
| Designation | Features | Art. no. |

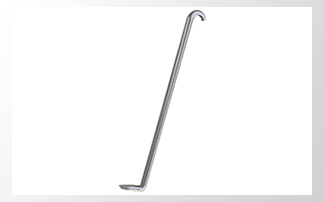

| Lifting and operating key |
| 600643 |

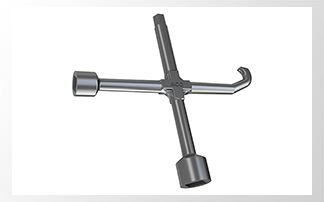

| Lifting and operating key |
| 4143.00/88518 |

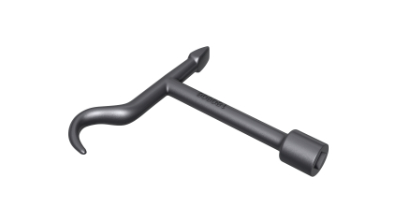

| Lifting and operating key |
| 4145.00/88141 |
| Eyebolt set to aid transport |
| 1201331 |
| Set of adjusting screws |
| 604613 |
