Our cable shaft covers are used for telecommunications, especially for electrical and fibre optic cables, but also for urban lighting in signalling systems and for district heating systems. They are also suitable for covering shafts for power stations, pumping stations, transformer stations and as inspection shafts in many other areas of application.
Product information
- according to DIN EN 124/DIN 1229 and RAL-GZ 692
- traffic-safe positioning thanks to high dead weight for minimum maintenance effort
- the smooth frame on the underside avoids installation errors
- highly wear-resistant damping inserts in the frame provide lasting protection against noise pollution
- optimised load distribution thanks to large-area corner support of the cover ensures steady positioning of the cover and avoids uneven wear and tear
- easy-to-clean open side lifting openings, no water build-up, therefore usable even in frosty conditions
- covers with two lids can be lifted out and inserted in any order

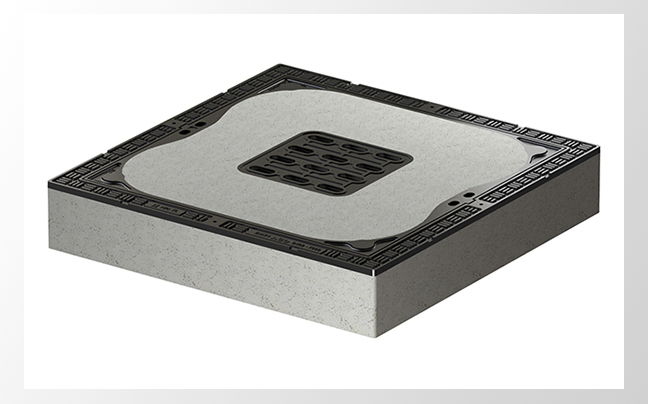

- torsion-resistant BEGU frame with cast-iron inner skirt
- mounting on the frame for transfer aid
- concrete according to exposure class XF4 according to DIN 206 (frame and cover)
| Clear widths | Class | Features | Overall height (mm) | kg | Art. no. |
| 700x700 mm | D 400 | with ventilation | 160 | 304 | 1201130 |
| without ventilation | 160 | 315 | 1201129 | ||
| surface water-tight | 160 | 308 | 1201136 | ||
| F 900 | with ventilation | 160 | 304 | 1201220 | |
| without ventilation | 160 | 315 | 1201219 | ||
| surface water-tight | 160 | 308 | 1201221 | ||
| 1400x700 mm | D 400 | with ventilation | 160 | 547 | 1201224 |
| without ventilation | 160 | 558 | 1201222 | ||
| surface water-tight | 160 | 547 | 1201226 | ||
| F 900 | with ventilation | 160 | 547 | 1201225 | |
| without ventilation | 160 | 558 | 1201223 | ||
| surface water-tight | 160 | 546 | 1201227 |
- according to DIN EN 124/DIN 1229 and RAL-GZ 692
- traffic-safe positioning thanks to high dead weight for minimum maintenance effort
- the smooth underside of the frame prevents installation errors. Highly wear- resistant damping inserts in the frame provide lasting protection against noise pollution
- optimised load distribution thanks to large-area corner support of the cover ensures steady positioning of the cover and avoids uneven wear and tear

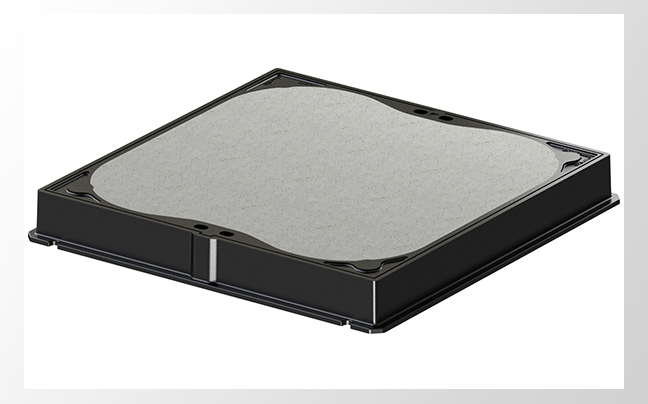

The ACO ClassicTop cable duct covers with cast iron frame are ideally suited for refurbishment projects due to their low frame height.
| Designation | Features | Art. no. |
| Lifting hook |
| 4109.40/57191 |
| for version with BEGU frame |
| 121331 |
| for surface-watertight version |
| 1015463 |
